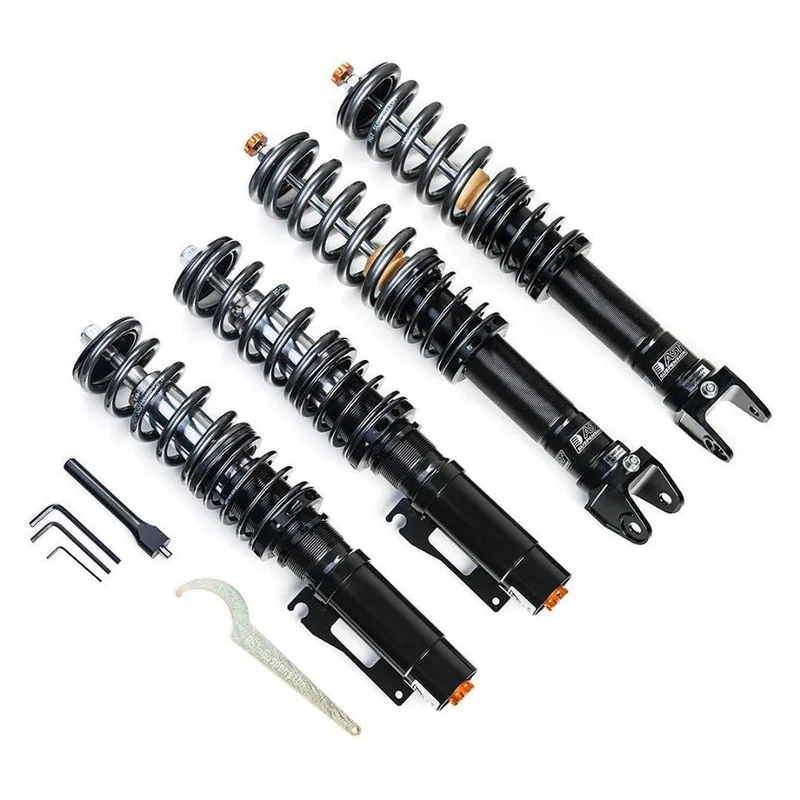

RS-R 2013 – 2020 Scion FR-S / Subaru BRZ / Toyota 86 (ZN6) Sports-i Moto Spec Coilovers

Description

Part #: rsrXSPIT065M

Spirited weekend track drives do not have to sacrifice daily driving comfort or performance.Designed for the performance enthusiast in mind, the RS-R Sports-I coilover system provides a comfortable ride for everyday use, yet is sufficient enough for those effervescent track days.

Part#: XSPIT065M
Compatibility: 2013-2021 Scion FR-S / Subaru BRZ / Toyota 86
Chassis code: ZN6 / ZC6

Preset Approximate Height From RS-R:
Front -30mm (-1.2inch)
Rear -30mm (-1.2inch)

Maximum Adjustment Ranges:
Front +15mm to -40mm (+0.6inch to -1.6inch)
Rear +30mm to -80mm (+1.2inch to -3.2inch)

Recommended Adjustments for Optimal Ride-ability:
Front +5mm to -40mm (+0.2inch to -1.6inch)
Rear 0mm to -50mm (0inch to -2.0inch)

Spring Rates:
Front 6.00kg/mm
Rear 7.00kg/mm

Dampers are 36 way adjustable in the front and 24 way adjustable in the rear.
Warranty 1 Year / 12,000 miles from the day of purchase.
